All form/station rough outlines drawn.
Picture Credit: M. Tanton

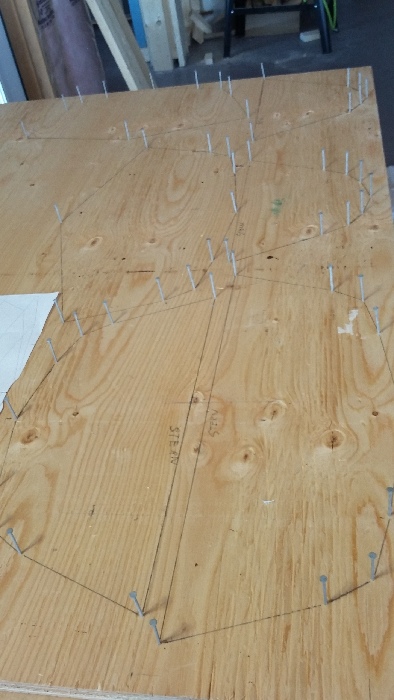

Rough outline (offsets transferred and connected). I left the nails in mostly for fun, they do give an idea of the number of point transferred. Some of them are used to draw a concave profile with a spline later.
|
