Trail Cafe: Picture Page - Building a Multi-Chine Tom Yost PVC Skin on Wood Frame Kayak - Pic Num: 8

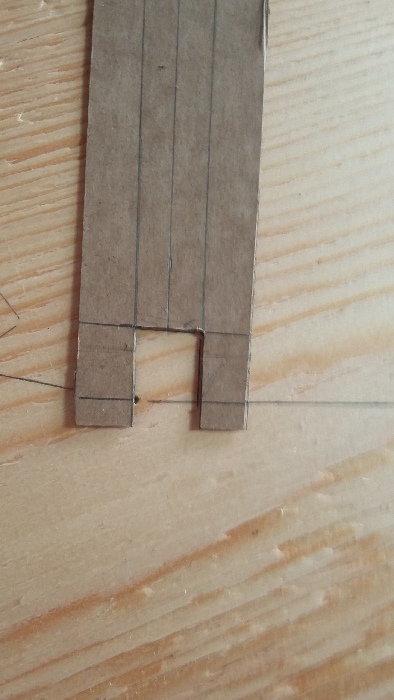

Jig for Chines, Keel and deck ridge.
Picture Credit: M. Tanton
The different lines show the different depths I need. In this case I'd setting up for a 3/4 inch chine.
