Plotted kayak forms
Picture Credit: M. Tanton

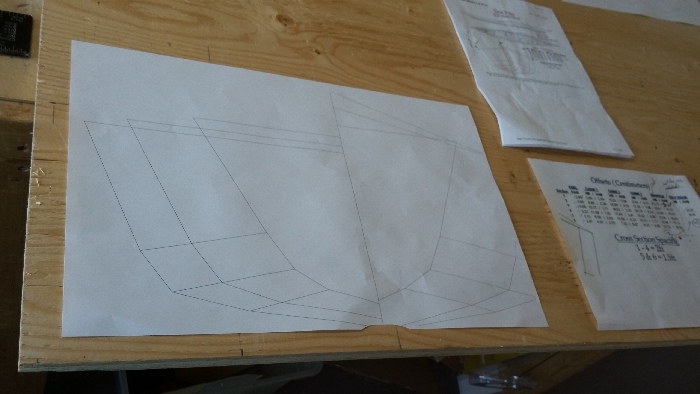

The plotted out forms for the Sea Pup on 11x17 paper. I did not draw in the notches for the chines, I drew these directly on the plywood with a template later.
If you are using half the form like this, it important to have the vertical center line in place. Not shown is the other half
|
